Diamond optical prisms

Diamond has an exceptionally high transmission over a very broad range of wavelengths and low scatter in IR applications. It is extremely hard and chemically inert, making CVD diamond the optimal choice in applications demanding higher power, larger area, and resistance to hazardous materials or greater strength. These abilities also enable smaller material geometries to be used, which opens up new lightweight applications.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button






Model: Optical cvd
Crystal growth process: single crystal CVD
Color: Colorless
Suggested application Applied to infrared radiation measuring device, the triangular diamond prism is good for mid-infrared transmission.
Key product features:
1.Extremely broad transmission spectrum
2. The refractive index of diamond is ~2.4. achieve broad and high transmission in the mid-infrared at wavelengths from 1 micron to 30 microns.
3. The surface roughness< 10 nm, for good transmission from 1μm wavelength,
4. The error is not exceed 0.2mm
5. Wedged or flat—wedged for the suppression of interference oscillations. Wedge angle: 0.5 to 1 degree , Cut in a variety of shapes and sizes, including lenses and prisms.
6. Diamond’s exceptional properties provide benefits in a variety
Shape: Customized (Please provide drawings)
Size range: 1-12 mm (single crystal CVD diamond),
Thickness: 0.05-3mm,
Crystallography Typically 100% single sector {100}
Edges Laser Cut
Laser Kerf 3-5°
Lateral Tolerance: +0.05/-0.05mm
Nitrogen Concentration: < 10 ppm
Refractive Index (10.6 µm) (1): 1064nm:2.392
600nm:2.415
Thermal Conductivity: typically 1800+Wm-1K-1
Transmission: Transmittance :1064nm:>65%
                              8μm~25μm:>70%

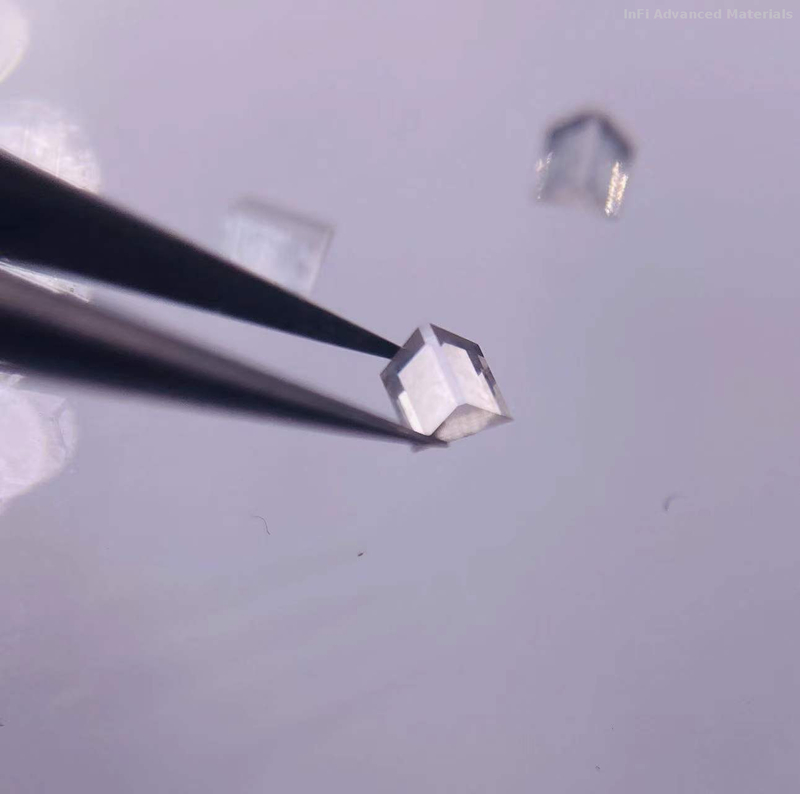

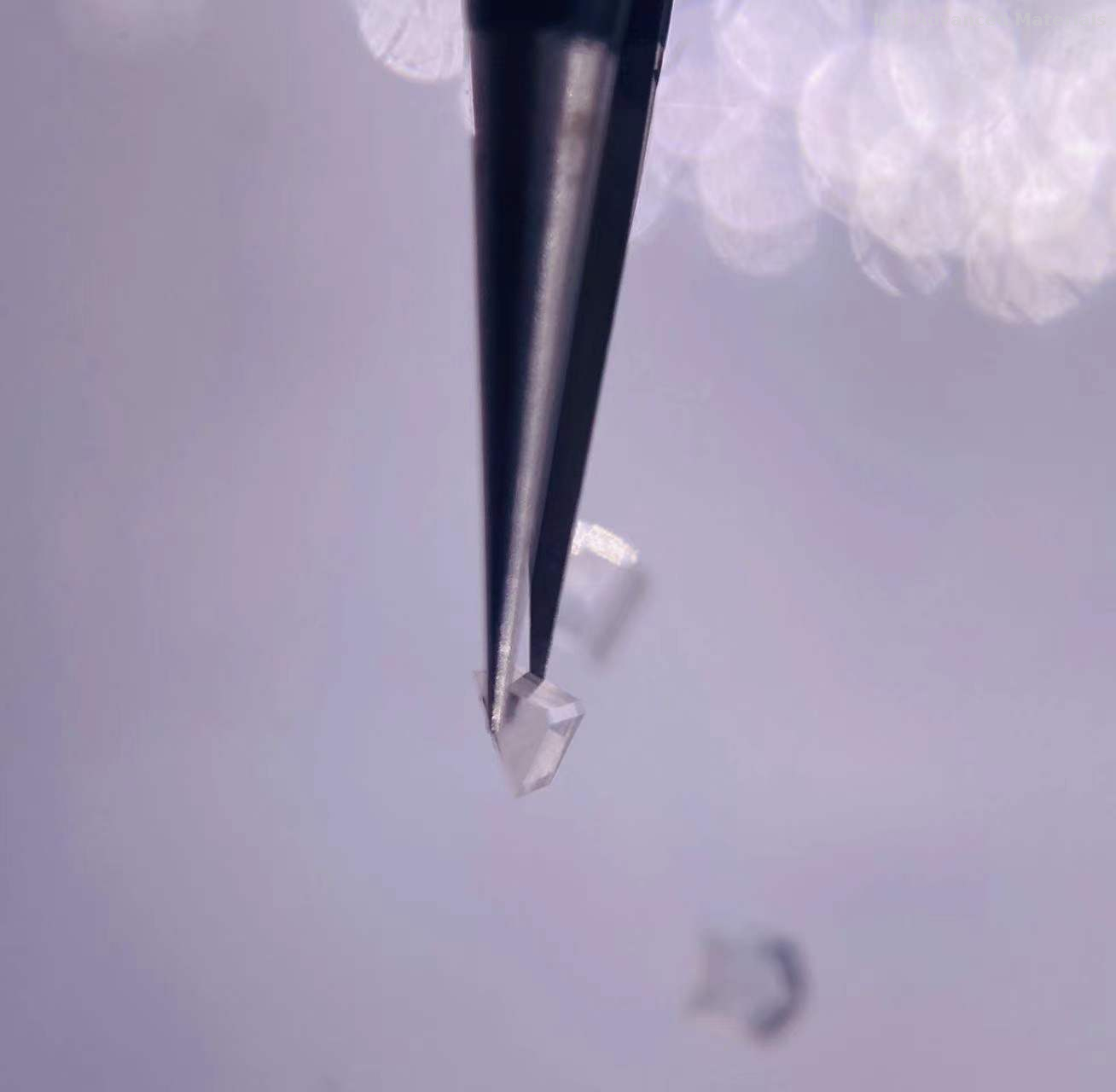

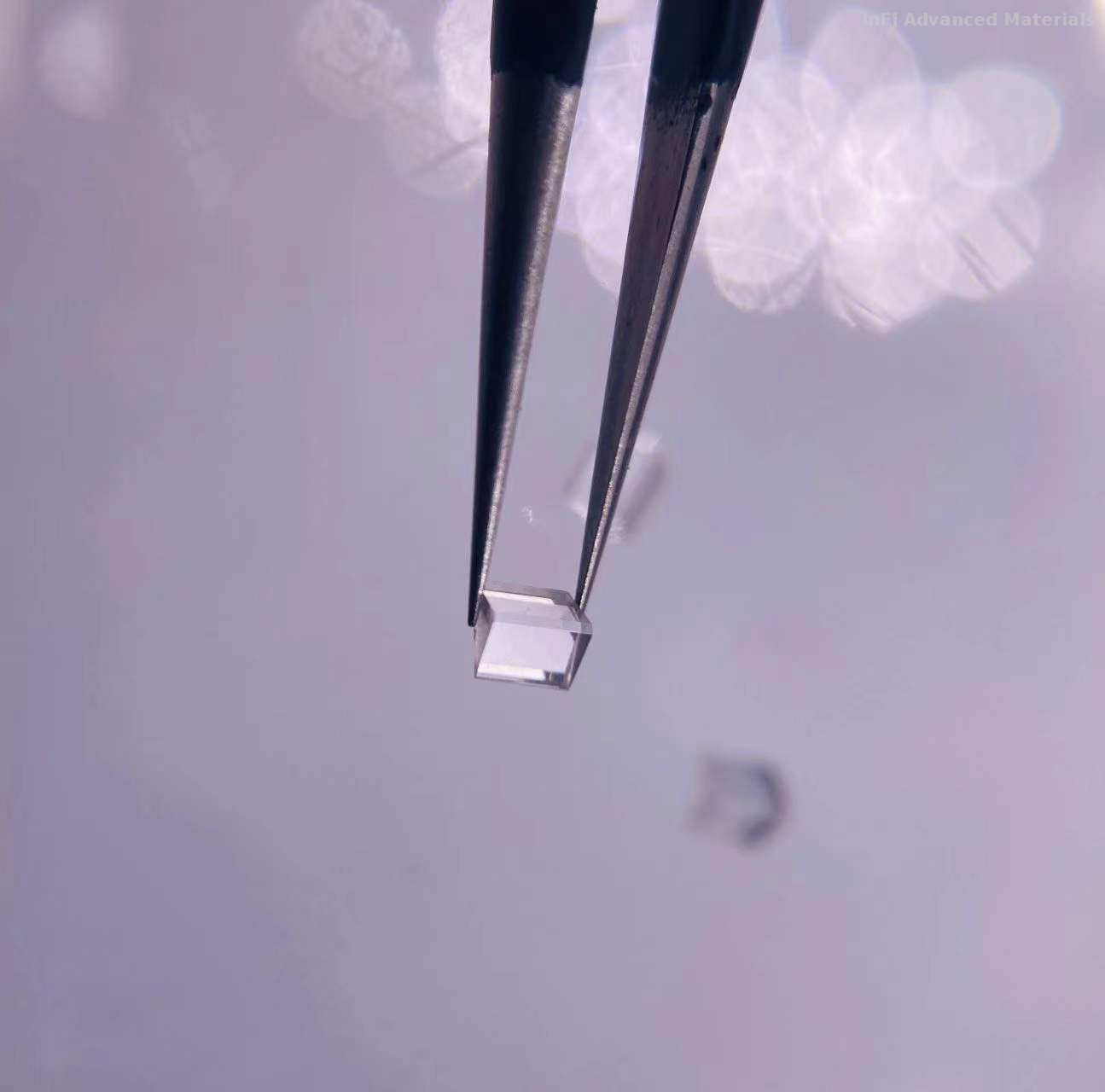

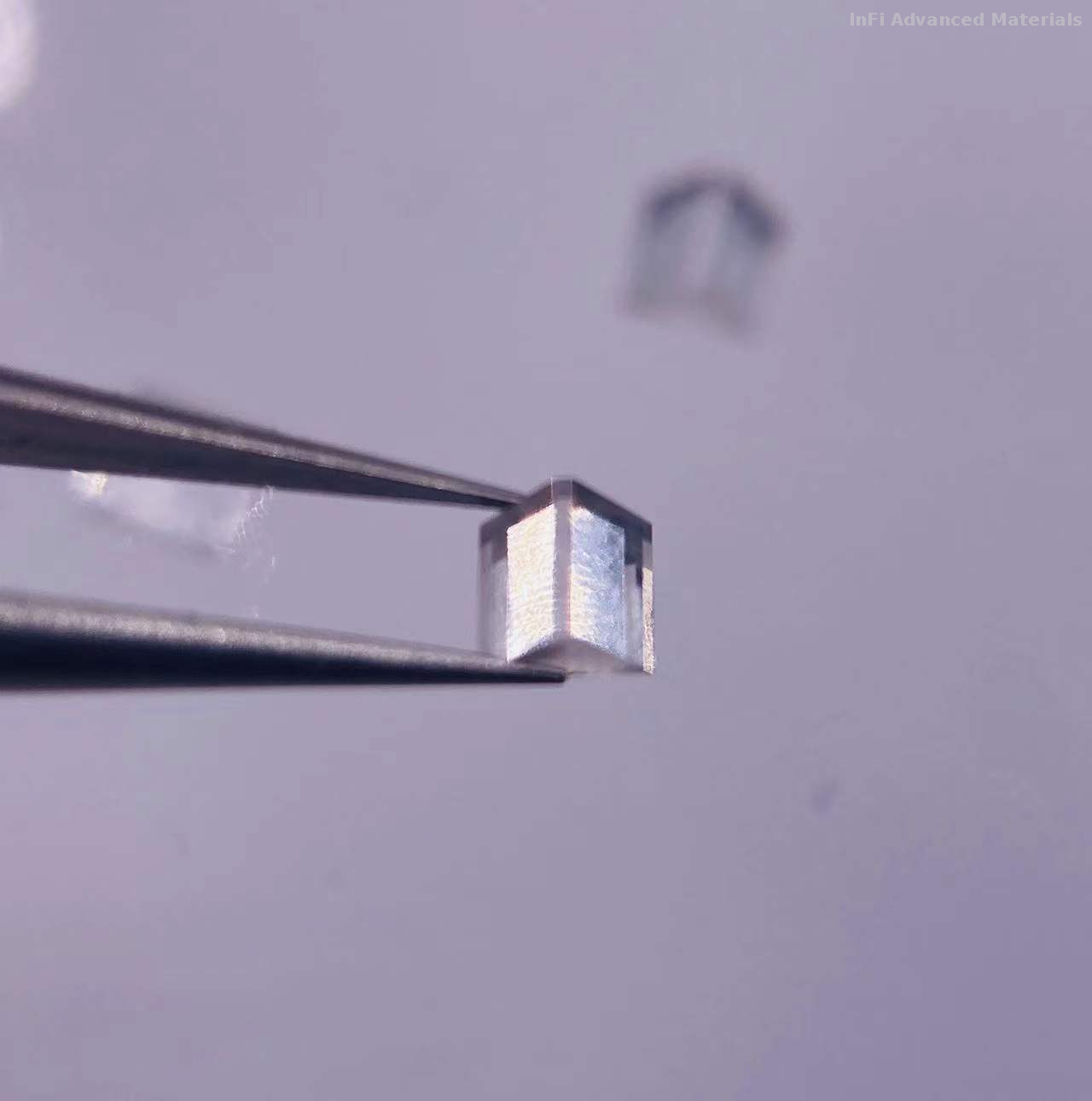

微信图片_202203151505004微信图片_202203151505005微信图片_202203151504481微信图片_202203151505002微信图片_202203151505003微信图片_20220315150448
