| Diamond Length: | |
|---|---|
| Quantity: | |
CST
INFI
| Brand: | Infi |
| Name: | Mono Diamond Turning Tool |
| Applicable Machine: | 1) Engraving machines. |
| 2) Precision carving machines. | |
| 3) Drilling and Tapping machines. | |
| 4) High gloss machines | |
| Applicable Materials： | 5) High-speed Engraving and Milling machines |
| Acrylic, Gold, Silver, Copper, Aluminum alloy, Zinc alloy | |
| Other soft metals | |
| Blade Material: | Whole Carbide Alloy |
| Characteristic: | Sharp, mirror finish after machining |
| Laser Kerf | < 3° |
| Our Advantages: | Fast delivery time for non-standard customized sizes, with the fastest delivery available on the same order day |
| Roughness, Ra | Two sides polished, Ra < 30 nm |
| Thickness Tolerance | +/- 0.05 mm |
| Available size | 1mm - 15mm |
| Available thickness | 0.1- 5mm |
| Micro-hardness | 80-150Gpa |
| Young modulus | 1150-1130Gpa |
| Boron Concentration [B]: | <0.05 ppm |
| Main Specifications: | 2.0x6x6Dx50Lx1F, 3.0x6x6Dx50Lx1F, 4.0x3x6Dx50Lx1F, 4.0x6x6Dx50Lx1F, 6x6x6Dx50Lx1F, 6x10x6Dx50Lx1F |
How to choose the orientation?
Generally speaking, if the diamond cutter is required to obtain the highest strength, the (100) crystal plane should be selected as the front and flank surfaces of the cutter,
if the diamond tool is required to resist mechanical wear, the (110) crystal plane should be selected as the front and rear of the cutter.
If the diamond tool is required to resist chemical wear, the (110) crystal plane should be used as the rake surface of the tool,
the (100) crystal plane as the flank surface, or the (100) crystal plane should be used for both the front and the flank surfaces.

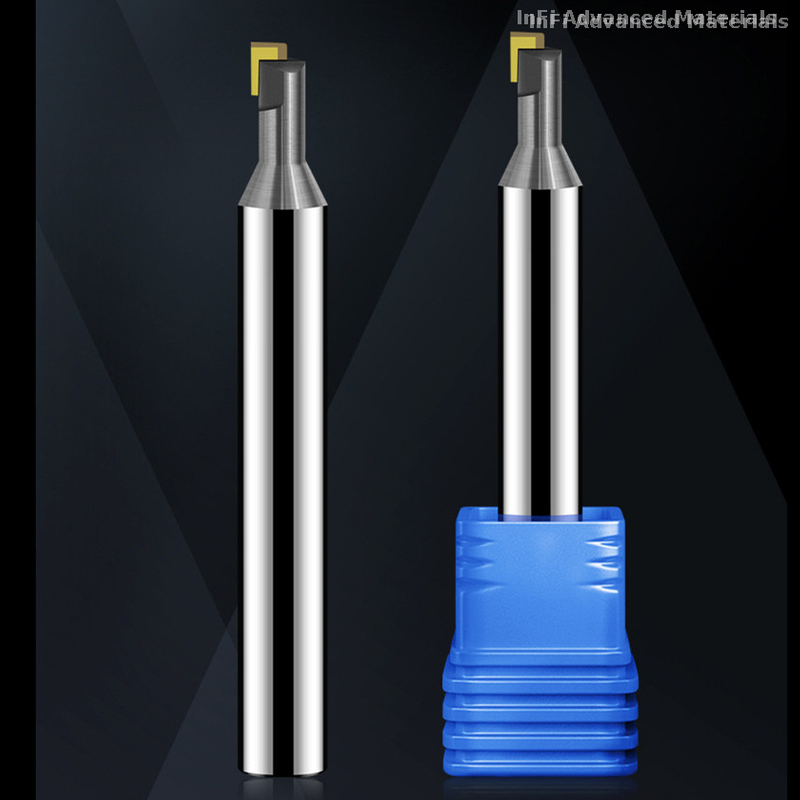

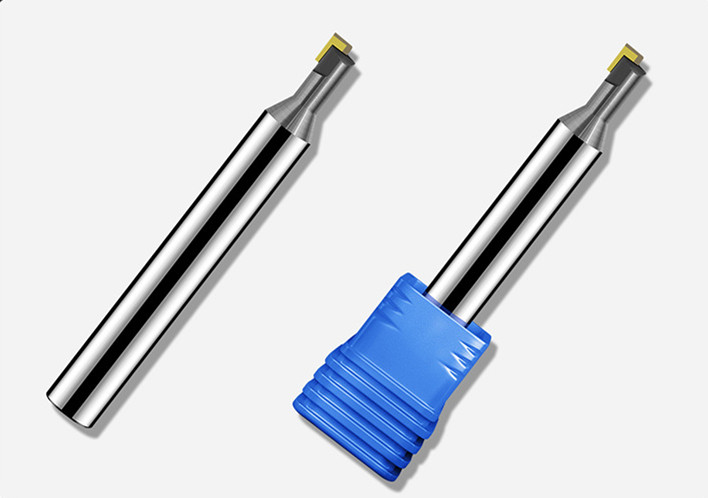

Details of our mono turning tools:

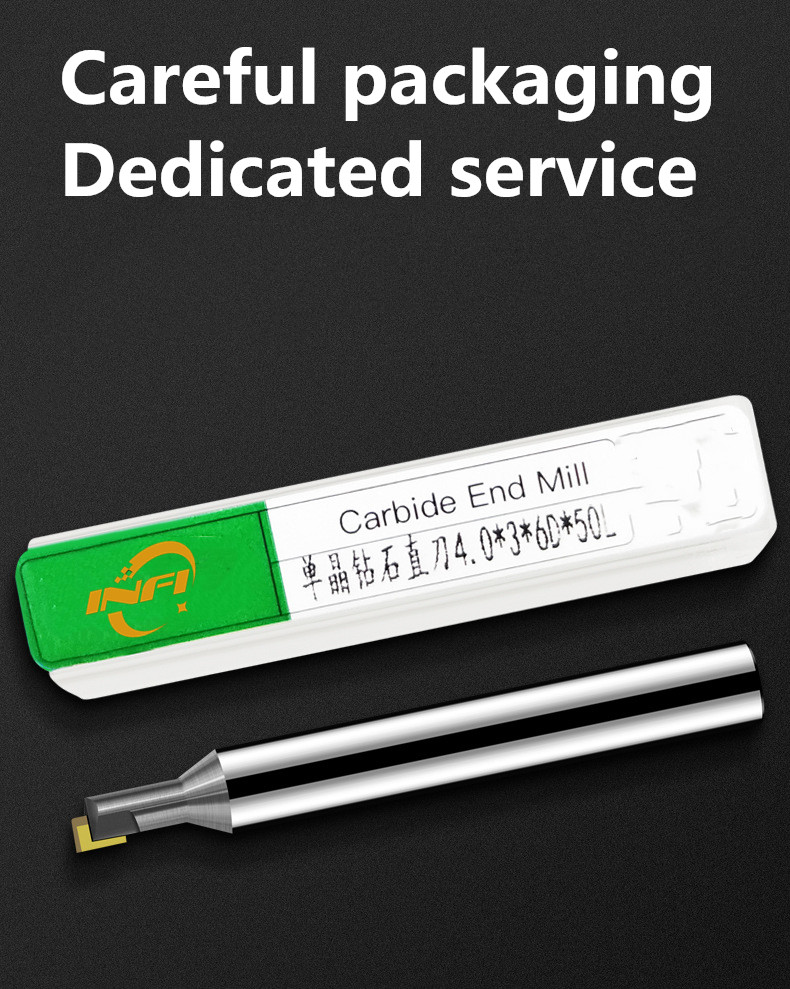

Packing

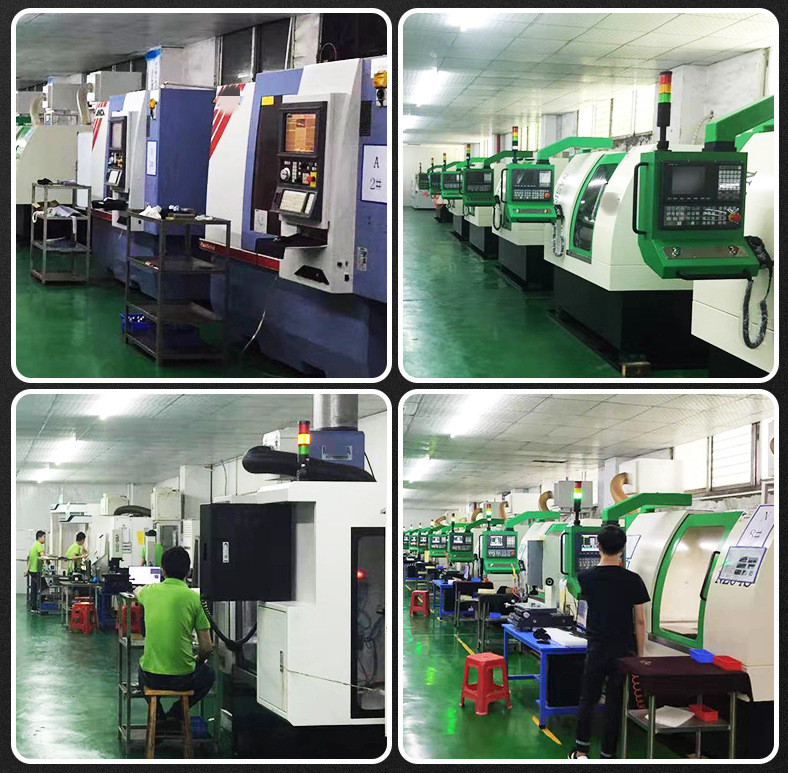

Factory Details

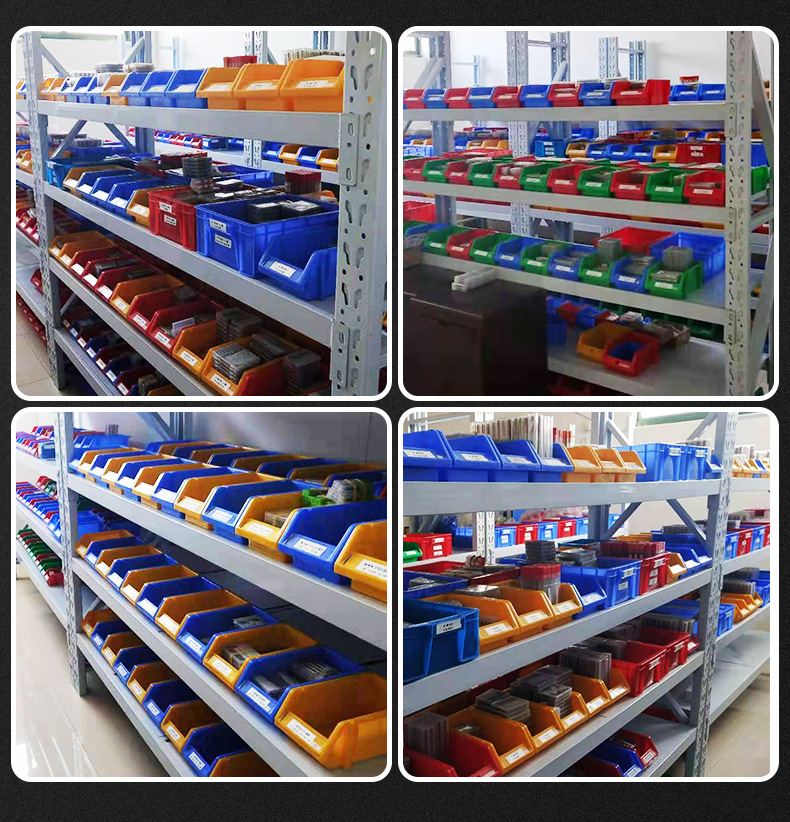

Storage Details
Common tool CVD size, for reference only
| 2.0x6x6Dx50Lx1F, | 3.0x6x6Dx50Lx1F |
| 4.0x6x6Dx50Lx1F | 6x6x6Dx50Lx1F |
| 6x10x6Dx50Lx1F |
