（111）- CVD MCD Oriented Diamond Wire Drawing Dies

" CVD / MCD technologies,  (111)-oriented diamond wire dies deliver unmatched precision for industrial wires, jewelry . And it have very long lifespan. "
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • INFI


（111）- CVD MCD Oriented Diamond Wire Drawing Dies
CVD / MCD Dual-Technology Solutions for Precision Wire Manufacturing


Core Technical Parameters

Parameter

CVD Diamond

MCD Diamond

Process

Chemical Vapor

Deposition

High Pressure

High Temperature

Orientation

(111)

(111)

Wire Diameter

φ0.003mm~φ5.0mm

φ0.003mm~φ2.0mm



Competitive Advantages

CVD Diamond Highlights

lUltimate Precision

lThermal Mastery

MCD Diamond Strengths

lCost Efficiency

lComplex Profiles

Shared Benefits

lMonocrystalline structure eliminates grain-boundary failures

l(111) plane along <110> direction triples shear resistance

lMinimal aperture deformation at 1200°C




Comprehensive Applications

lStainless Steel Wire

lMedical Wires

lLuxury Jewelry

lSemiconductor

lIndustrial Mass Production



Customizable sizes-MCD

PRODUCT
NOMENCLATURE

NOMINAL
THICKNESS(MM)

THICKNESS
TOLERANCE(MM)

MINIMUM
INSCRIBED CIRCLE
DIAMETER(MM)

SCD111 07

0.7

0.66-0.75

0.8

SCD111 08

0.8

0.76-0.85

0.9

SCD111 09

0.9

0.86-0.95

1.0

SCD111 10

1.0

0.96-1.05

1.1

SCD111 11

1.1

1.06-1.15

1.2

SCD111 12

1.2

1.16-1.23

1.3

SCD111 13

1.3

1.26-1.35

1.4

SCD111 14

1.4

1.36-1.45

1.45

SCD111 15

1.5

1.46-1.55

1.5



Customizable sizes-CVD

尺寸-立方体尺寸-圆柱

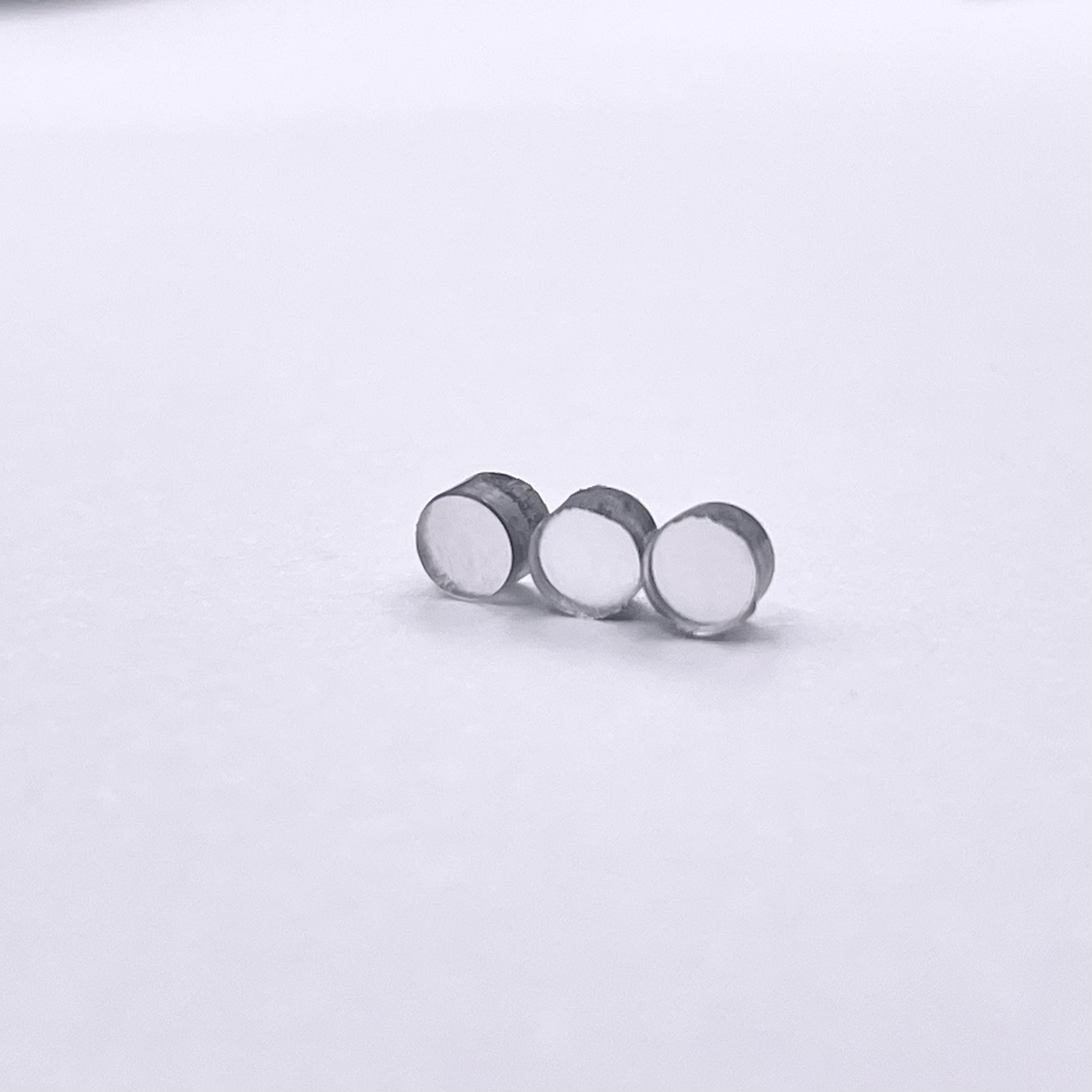

Product Picture

微信图片_20250418113525微信图片_20250312143913
