Special discount for this low quality cvd rough diamond.
Size: 8*8 9*9 10*10 11*11 12*12 13*13
Thickness:1-2mm
Quality: Rough. both side unpolished.
With small polycrystalline spot,and small crack on the side.

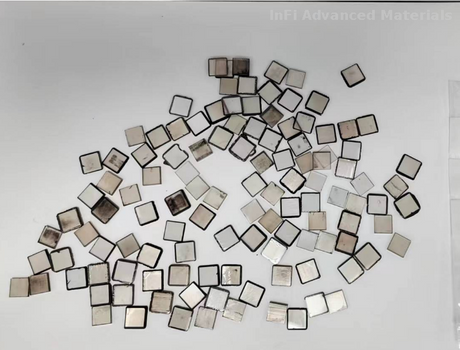

In hands for 2000CT. as picture .
It is very good for industry tools.
CVD single crystal diamond properties:
Since CVD diamond does not contain any metal catalysts, its thermal stability is close to that of natural diamond. Like high temperature and high pressure artificially synthesized polycrystalline diamond, CVD diamond grains are also arranged in disorder, without brittle cleavage planes, so they are isotropic.
nitrogen content：<50ppm
Hardness (microhardness)：80～150GPa
Young's modulus：1150～130OGPa
coefficient of friction：0.05~0.05
Thermal expansion coefficient：10-.K-l
Thermal conductivity：1500-2000 w/ (m·K)
Size Available:
| Suggested application | Sustrated/seeds for single crystal CVD growth |
| Crystal growth process: | CVD |
| Color: | Colorless |
| Available size : | 3x3x0.3 4x4x0.3 5x5x0.3 6x6x0.3 7x7x0.3 8x8x0.3 9x9x0.6 10x10x0.3 11x11x0.3 12x12x0.3 13x13x0.3 15x15x0.3 |
| Benefits： | The length, width and thickness are all positive tolerance, |
| There are no polycrystalline black spots, cracks under the 20x magnifying glass. | |
| The cutting is perfect without small missing corners. | |
| The stress distribution is uniform under the polarizer. | |
| Orientation： | 4pt/100 |
| Lateral Dimensions Measured | to smaller side |
| Edges | Laser Cut |
| Edge Orientation | <100> edges |
| Face Orientation | {100} faces |
| Lateral Tolerance: | L + W tolerance (0, +0.3 mm), thickness tolerance (0, +0.1mm). |
| Side 1, Roughness, Ra | Two sides polished, Ra < 20 nm One side polished, Unpolished |
| Boron Concentration [B]: | <0.05 ppm |
| Nitrogen Concentration: | < 20 ppm |

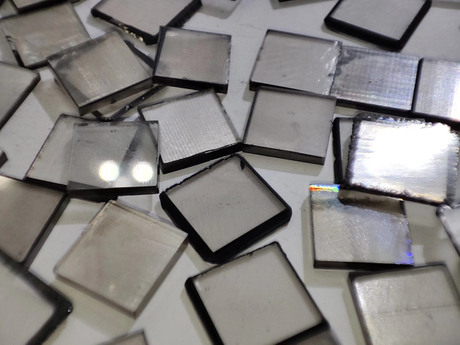

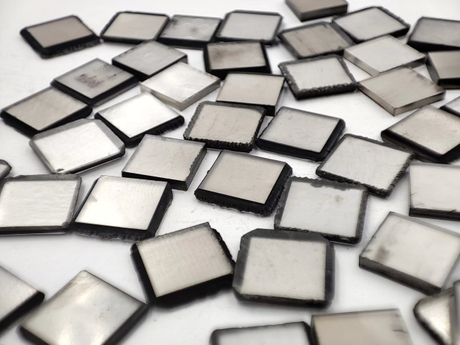

Picture details:
