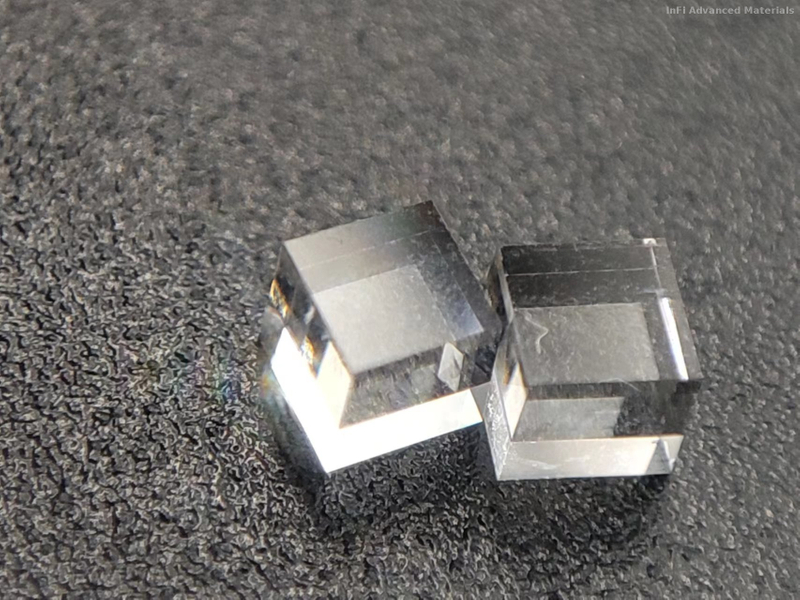

cube cvd diamond optical prism with low nitrogen 1-10ppm 6 side polished 2*2*2

Single crystal diamond CVD (chemical vapor deposition) refers to a type of diamond that is produced using the CVD process. In this process, a mixture of carbon-containing gases is decomposed under controlled conditions, resulting in the formation of a single crystal diamond layer on a substrate.

Single crystal diamond CVD is known for its exceptional hardness and thermal conductivity, which makes it useful for a range of industrial and scientific applications, such as cutting and grinding tools, heat spreaders, and optical components.

Compared to other forms of synthetic diamond, single crystal diamond CVD has a highly ordered crystal structure, which gives it improved physical and mechanical properties. This makes it a desirable material for a range of high-performance applications, where its hardness and thermal conductivity are important factors.

In summary, single crystal diamond CVD is a type of synthetic diamond that is produced using the CVD process and is characterized by its exceptional hardness and thermal conductivity. It has a wide range of applications in industries such as manufacturing, electronics, and optics.


Size:
Orientation:
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • JSD

  • INFI

CVD single crystal diamond properties:

Since CVD diamond does not contain any metal catalysts, its thermal stability is close to that of natural diamond. Like high temperature and high pressure artificially synthesized polycrystalline diamond, CVD diamond grains are also arranged in disorder, without brittle cleavage planes, so they are isotropic.


Diamond has an exceptionally high transmission over a very broad range of wavelengths and low scatter in IR applications. It is extremely hard and chemically inert; making CVD diamond the optimal choice in applications demanding higher power, larger area, and resistance to hazardous materials or greater strength.  These abilities also enable smaller material geometries to be used, which opens up new lightweight applications.  Advances in the creation and shaping of diamond enable us to provide solutions to novel optical problems.


Application


High power CO₂ lasers

Long wavelength IR imaging (8-14 micron)

Spectroscopy

High power RF generators and gyrotrons

Disc lasers

Raman lasers

VECSELs

Diamond lenses

Key product features:


• Extremely broad transmission spectrum
1. The refractive index of diamond should be ~2.4. We need to achieve broad and high transmission in the mid-infrared at wavelengths from 1 micron to 30 microns.
2. The surface roughness should be well below 50nm for good transmission from 1μm wavelength,
3. The error should not exceed 0.2mm,
4. Applied to infrared radiation measuring device, the triangular diamond prism is good for mid-infrared transmission.

Size Available:

Benefits:   Available in both SC (up to 7.5 mm sq) — Thicknesses up to 1.2 mm

Surface roughness down to 2-3 nm Ra for SC and 10 nm Ra for poly
Wedged or flat—wedged for the suppression of interference oscillations. Wedge angle: 0.5 to 1 degree
Cut in a variety of shapes and sizes, including lenses and prisms
Diamond’s exceptional properties provide benefits in a variety
Orientation: 2PT/110. 4pt/100
Shape: Circle ,Square,triangle, Trapezoid,
Size availability: Available in both SC (up to 15 mm sq) — Thicknesses up to 1.2 mm

Surface roughness down to 2-3 nm Ra for SC and 10 nm Ra for poly
Wedged or flat—wedged for the suppression of interference oscillations. Wedge angle: 0.5 to 1 degree
Mounted in flange or free-standing
Cut in a variety of shapes and sizes, including lenses and prisms
Diamond’s exceptional properties provide benefits in a variety

Length 2-15mm
Width 2-15mm
Thickness Dimension 0.05-0.3
Crystallographic Orientation (Miscut) +/- 3°
Crystallography Typically 100% single sector {100}
Lateral Dimensions Measured to smaller side
Edges Laser Cut
Edge Features < 0.2 mm
Edge Orientation <100> edges
Face Orientation {100} faces
Laser Kerf 3-5°
Lateral Tolerance: +0.05/-0.05mm
Flatness Within 2µm
Parallelism : 10-20um
Side 1, Roughness, Ra polished, Ra < 10 nm
Side 2, Roughness, Ra polished, Ra < 10 nm
Thickness Tolerance +/- 0.05 mm
Boron Concentration [B]: <0.05ppm
Nitrogen Concentration: < 10-50 ppm
Refractive Index (10.6 µm) (1): 1064nm:2.392
600nm:2.415
Thermal Conductivity: typically 1000+Wm-1K-1
Transmission: Transmittance :1064nm:>65%
                              8μm~25μm:>70%
