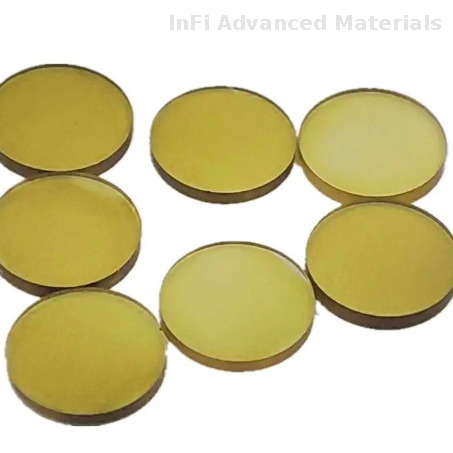

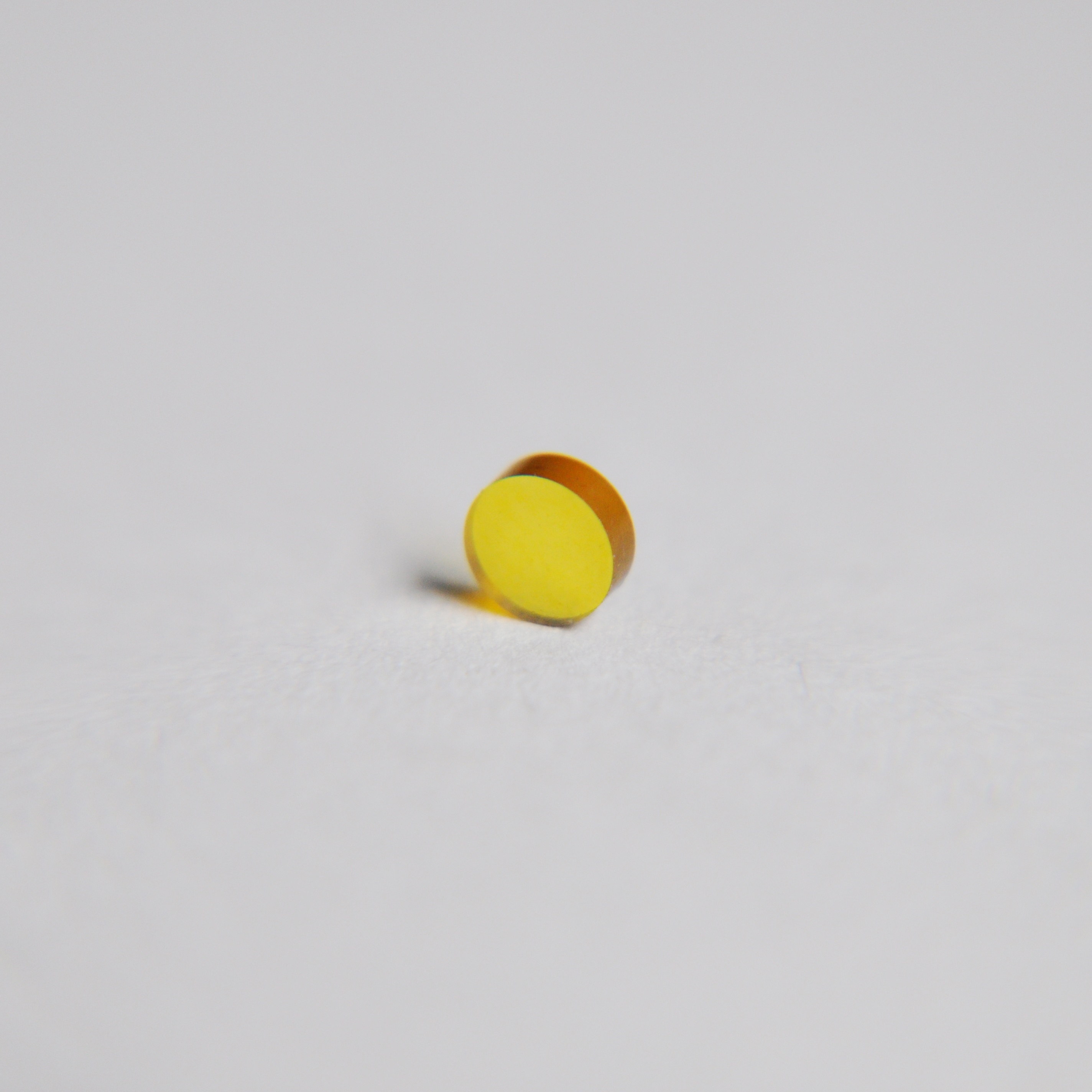

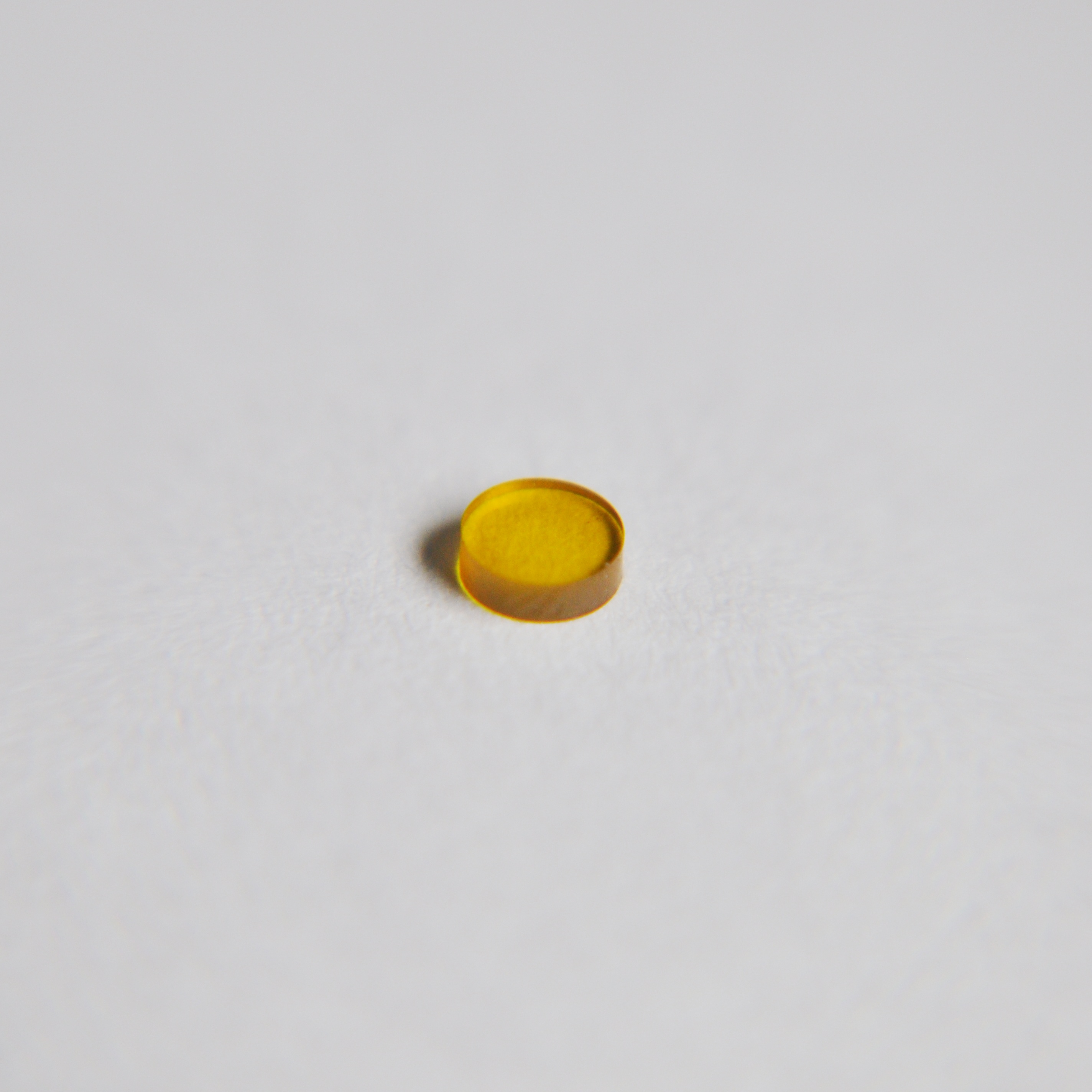

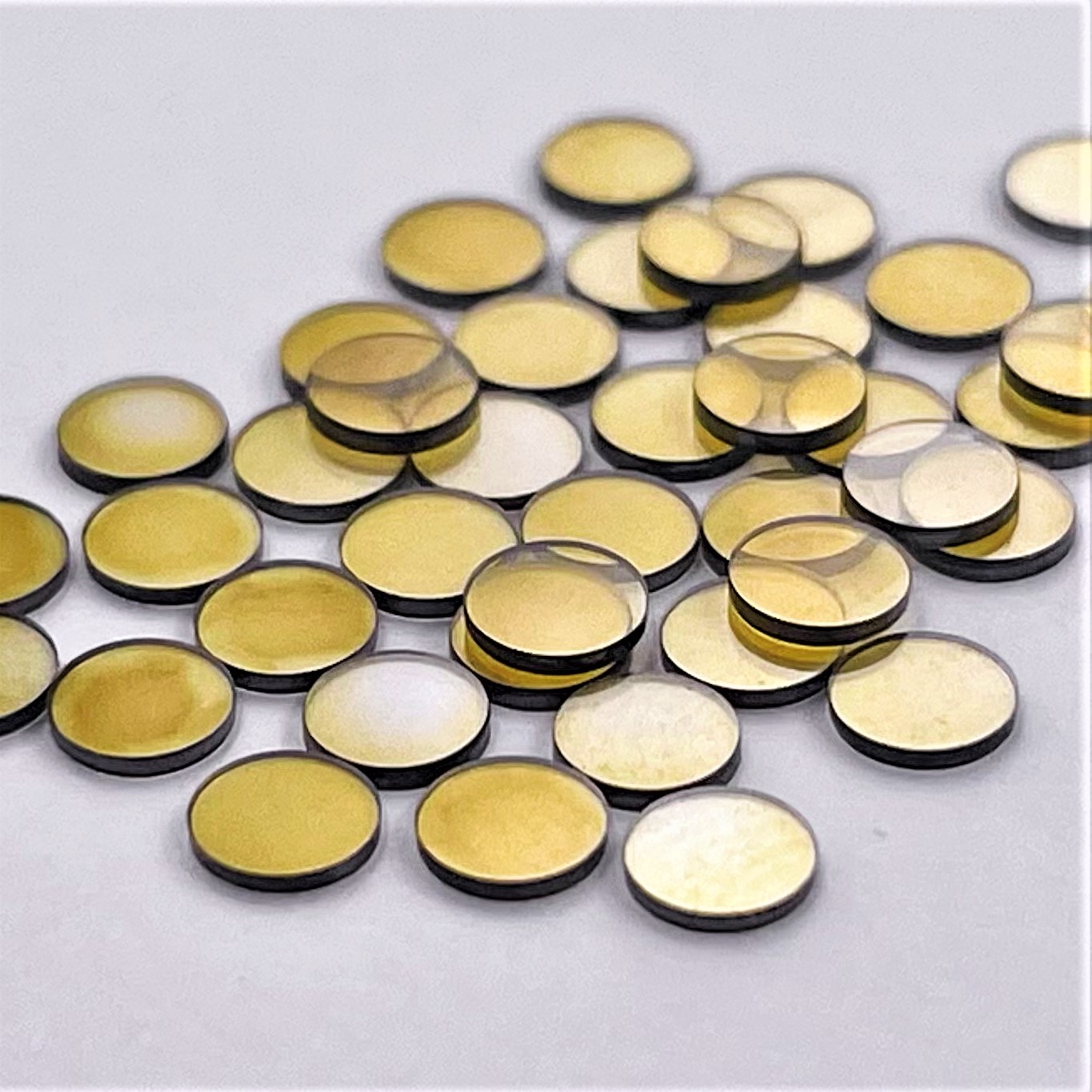

Yellow CVD Diamond Plates
Developed using HPHT technology (high pressure, high temperature), synthetic hpht monocrystal diamond (MCD) is achieved by combining a mixture of carbon and transitional metals at very high pressures and temperatures
MCD Diamond Strengths
Cost Efficiency
Complex Profiles
High hardness and wear resistance
High efficiency and low cost
High surface finish can be obtained on your workpiece
What’s our advantages ?
The color is More lighter than normal diamonds on the market
The clarity is more better than normal diamonds on the market
More cheaper than the diamond which have the same grade and the same sizes on the market.
Application :
Super finishing and Miller finishing for Aluminum, Industrial Mass Production,Copper, Brass,Gold, Nickel (Other Non Ferrous metals),Ultra Precision Cutting,Clear Plastics
Specification
| Suggested application | MCD Cutting Tools |
| Crystal growth process: | Single crystal HPHT |
| Color: | Yellow and dark yellow |
| Usage | Cutting tools |
| sample | HPHT diamond for cutting tools |
| Quality | High quality |
| content | C |
| Feature | Wear Resistant |
| Applied fields | Industry |
| Orientation: | 4pt/100 |
| Shape: | Square or round |
| Size range: | 1.0mm -7.0 mm |
| Lateral Dimensions Measured | to smaller side |
| Edges | Natural growth |
| Edge Orientation | <100> edges |
| Corner Orientation | <111> |
| Face Orientation | {100} faces |
| Lateral Tolerance: | ‘+0.5/-0 mm |
| Surface Roughness, Ra | Polished, Ra < 30 nm |
| Thickness Tolerance | +/- 0.05 mm |
Shipping Deatils:
| Place Of Origin | Hunan. China |
| Delivery Time | 1 - 15 Working Days Base on Order Quantity |
| Payment Terms | 100% Payment In Advance |
| Shipping way | DHL.FedEx, SF Express,UPS,EMS,TNT etc |
| M.O.Q | Negotiable |
| Port | main port in China |
